Four Color Pad Printing Machine

Four Color Pad Printing Machine


WE-164A / WE-164E4

Detail Specifications / Descriptions
* Applications:
o Suitable for telephone and mobile phone's key pad, household electric appliance and sporting goods.

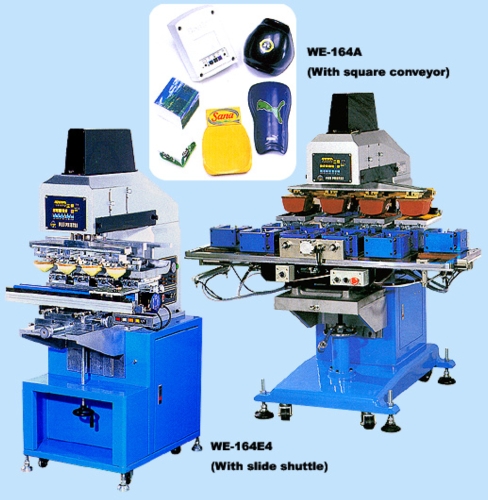

* Model : WE-164A
o Color : 4
o Max Printing Plate : 150 x 150 (mm)
o Output / Hour : 600 ~ 1,200
o Dimension (L x W x H) : 1,000 x 940 x 1,550 (mm)
o Net WT : 220 kg
* Model : WE-164E4
o Color : 4
o Max Printing Plate : 110 x 140 (mm)
o Output / Hour : 600 ~ 1,200
o Dimension (L x W x H) : 1,000 x 600 x 1,550 (mm)
o Net WT : 220 kg


* With microprocessor controlled and auto "DEFAULT" system, easy to operate and maintenance.
* An advanced and unique four times "PAUSE" function for better printing quality has been designed to enable users who may stop or continue the operation, as wish, any time in process of printing.
* A durable and trouble free both Germany made "FESTO" and Japan made "SMC" quality pneumatic components and bearing have been adopted and used on the machine.
* A detachable ink tray and adjustable Dr. blade are used on the machine of which these two separate unit can be adjusted respectively as per different applications, as wish, if required.
* A "Temperature Control" hot air equipment is mounted on the machine for quick ink drying.
* An optional square conveyor used as for 1 to 4 color registration printing battle, which can be made to order as per the objects and also can be linked with other peripheral equipments to increase production capacity, is available (On request).
* Custom-made machine is available and welcome.
