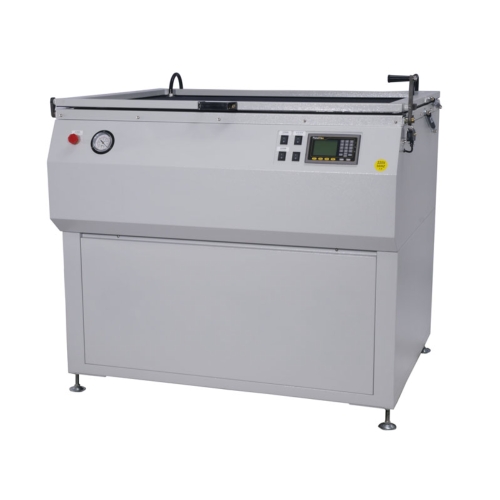

Silk Screen Vacuum Printing Frame

* Standard light source: Made in Japan 3000W instantly-starting UV lamp
* Vacuum system:1/4HP Low-noise oilless vacuum system
* Power source: single phase 220V 50/60HZ 25A

Features:

* High-Speed Vacuum System
o Equipped with dustless Aoilless and low-noise vacuum pump and highly-tensile AUV-proof rubber board CCreates a vacuum evenly and rapidly CQuick and immediate contact between film and screen Avery smooth contact surface CGood for printing images made up of extra-fine and high density lines down to direct Aindirect or direct/indirect screens in a dustless room.
* Precision Integration Light Meter
o Programmable Logic Controller (PLC) with LCD monitor, the Light accumulator controls the exposure accurately with deviation ±2%, disregards the variation of UV light intensity from lamp fading, power changing, and starting temperature.
* Even spreading of UV light
o Imported reflector material endures strong UV light and resists oxidization; special design allows light spreading evenly, that the PS plate can be exposed evenly & steadily.
* High Power UV lamp
o Two instant types 3000W or 6000W are available for your selection with excellent power saving, or two steps warm up type (2000W / 4000W) for heavy job loading operation.
* Strong machine structure with big drawers for film keeping
o High-tension steel with digitized shaping, static powder coating, ensures 10 years time service


Max. size of screen frame 60*90cm / 90*120cm / 135*135cm
Size of film for indirect screen 75*100cm / 100*130cm / 145*145cm
Net weight 180 kgs / 240 kgs / 400 kgs
Gross weight 320 kgs / 420 kgs / 650 kgs
Machine dimension 128*102*110 (cm) / 160*135*122 (cm) / 176*176*122 (cm)
Packing dimension 150*125*140 (cm) / 180*155*160 (cm) / 198*198*160(cm)
