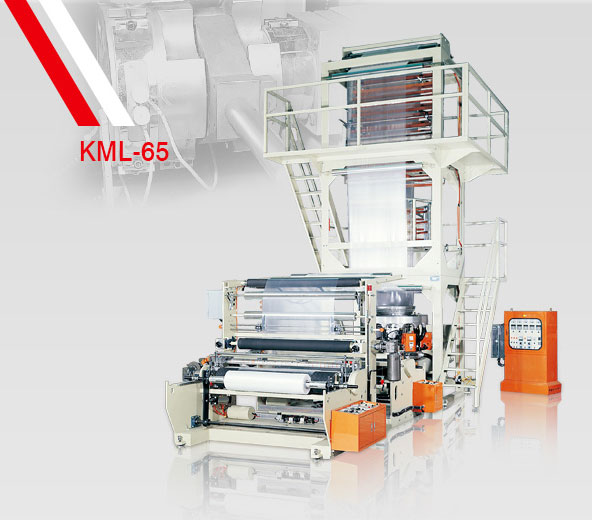

LDPE/LLDPE HIGH SPEED PLASTIC INFLATION MACHINE
- Model:
- KML-65
Detail Specifications / Descriptions
| MODEL | KML-65 |
|---|---|
| KML-65 | |
| SUITABLE MATERIAL | LDPE/LLDPE |
| LDPE/LLDPE | |
| FILM THICKNESS | 0.025-0.15 mm |
| 0.025-0.15 mm | |
| FILM WIDTH RANGE | 400-1400 mm |
| 400-1400 mm | |
| FILM OUTPUT | 50-105 kgs/hr |
| 50-105 kgs/hr | |
| EXTRUDER UNIT | |
| SCREW DIAMETER/TYPE | Ø 65mm |
| Ø 65mm | |
| SCREW L/D RATIO | 26:1 |
| 26:1 | |
| HEATING CAPACITY | 14.7 kw |
| 14.7 kw | |
| AUTO THERMO CONTROL | 4 zone |
| 4 zone | |
| BARREL COOLING FAN | 1/8 HP x 2 |
| 1/8 HP x 2 | |
| DRIVING MOTOR | AC 50 HP + Inverter |
| AC 50 HP + Inverter | |
| DIE UNIT | |
| DIE DIAMETER | Ø350 mm |
| Ø350 mm | |
| AIR RING DIAMETER | Ø400 mm |
| Ø400 mm | |
| HEATING CAPACITY | 14.4 kw |
| 14.4 kw | |
| AUTO THERMO CONTROL | 2 zone |
| 2 zone | |
| COOLING BLOWER | 5 HP |
| 5 HP | |
| TAKE-UP UNIT | |
| TAKE-UP ROLLER | 1500 mm |
| 1500 mm | |
| EFFECTIVE WIDTH | 1400 mm |
| 1400 mm | |
| TAKE-UP MOTOR | AC 1 HP |
| AC 1 HP | |
| TAKE-UP SPEED | 45 m/min |
| 45 m/min | |
| ELEVATING MOTOR | |
| WINDING UNIT | |
| ROLLER WIDTH | 1500 mm |
| 1500 mm | |
| WINDING WIDTH | 1400 mm |
| 1400 mm | |
| WINDING MOTOR | DC 1 HP |
| DC 1 HP | |
| MACHINE DIMENSION | 800×400×630 cm |
| 800×400×630 cm | |
