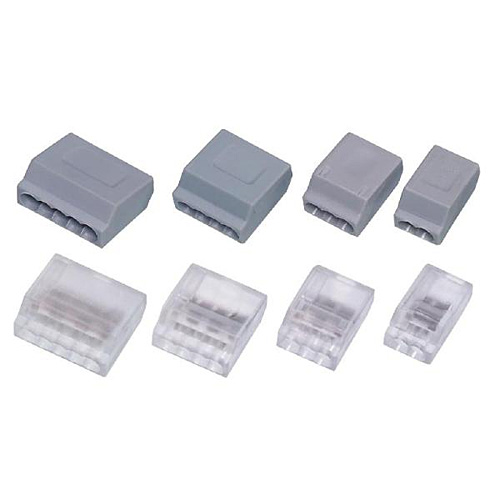

Push-In Connector – Solid wire push in connector
- Model:
- UC / UCA
- Country of Origin:
- Taiwan
- Material:
- Copper with nylon / pc housing
- Color:
- Gray, transparent

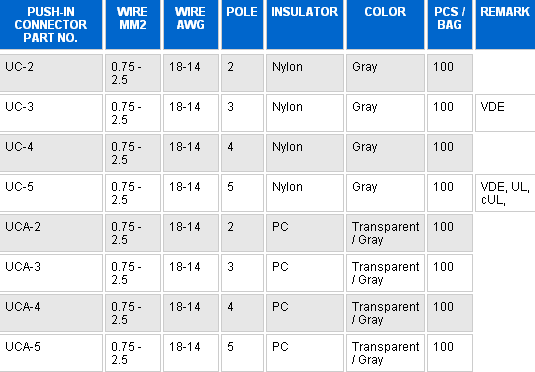

Detail Specifications / Descriptions
Specifications:
1.Electric current rating: AWG 18 -14: 24 A - Voltage resistance rating: 450 V
2.Temperature resistance rating: 105 degrees Celsius. (221 Fahrenheit)
3.Approval: RoHS, UL (File No. E155361), VDE (40001474)
4.OEM / ODM products
Features:
1.Quick installation. - Just push solid wire into the clamp. No twisting wire. No tapping.
2.Multiple ports options for various wiring range. - Various insert poles can for different application and usage.
3.Reliable pull strength. - High quality clamp inside, promise the reliable pull strength in wiring job.
4.Wire insertion is repeatable.
