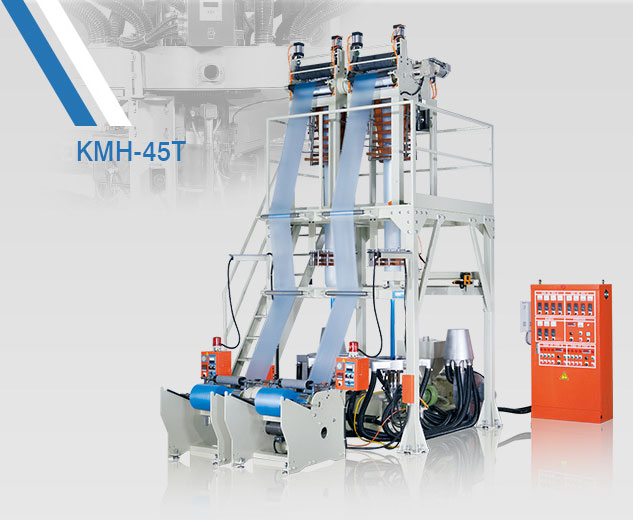

TWIN HEAD HDPE PLASTIC INFLATION MACHINE

MODEL	KMH-45T
KMH-45T
SUITABLE MATERIAL	HDPE
HDPE
FILM THICKNESS	0.008 ~ 0.06 mm
0.008 ~ 0.06 mm
FILM WIDTH RANGE	400 mm × 2
400 mm × 2
FILM OUTPUT	24 kgs/hr × 2
24 kgs/hr × 2
EXTRUDER UNIT
SCREW DIAMETER/TYPE	Ø45 mm
Ø45 mm
SCREW L/D RATIO	28:1
28:1
HEATING CAPACITY	9.6 kw
9.6 kw
BARREL COOLING FAN	1/8 HP × 3
1/8 HP × 3
DRIVING MOTOR	AC 20 HP + INVERTER
AC 20 HP + INVERTER
DIE UNIT (2 UNIT)
DIE DIAMETER	Ø50 mm
Ø50 mm
AIR RING DIAMETER	Ø100 mm
Ø100 mm
COOLING BLOWER	3 HP
3 HP
TAKE-UP UNIT (2 UNIT)
TAKE-UP ROLLER	500 mm
500 mm
EFFECTIVE WIDTH	400 mm
400 mm
TAKE-UP MOTOR	AC 1/2 HP
AC 1/2 HP
TAKE-UP SPEED	85 m/min
85 m/min
WINDING UNIT (2 UNIT)
ROLLER WIDTH	500 mm
500 mm
WINDING WIDTH	400 mm
400 mm
WINDING MOTOR	DC 1/2 HP × 2
DC 1/2 HP × 2

* Remark: The above machine specification and production range can be changed without any notice due to kind of different application.
