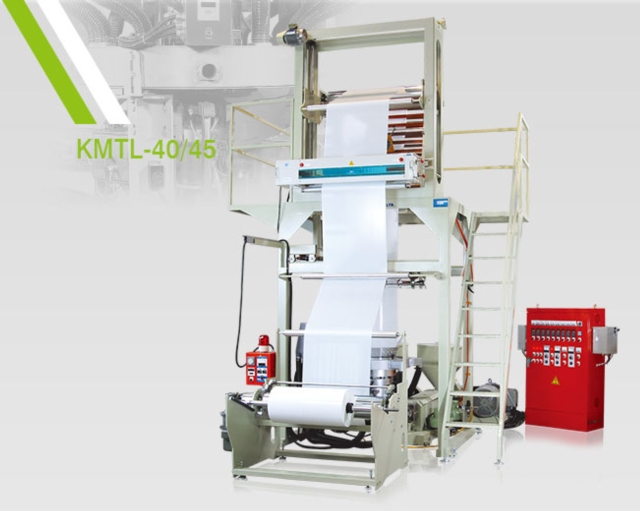

TWO LAYER HDPE/LDPE/ LLDPE HIGH SPEED PLASTIC INFLATION MACHINE

MODEL	KMTL-40	KMTL-45
KMTL-40	KMTL-45
SUITABLE MATERIAL	HDPE/LDPE/LLDPE	HDPE/LDPE/LLDPE
HDPE/LDPE/LLDPE	HDPE/LDPE/LLDPE
FILM THICKNESS	0.010-0.15 mm	0.010-0.15 mm
0.010-0.15 mm	0.010-0.15 mm
FILM WIDTH RANGE	800 mm	900 mm
800 mm	900 mm
FILM OUTPUT	15-70 kgs/hr	20-90 kgs/hr
15-70 kgs/hr	20-90 kgs/hr
EXTRUDER UNIT
SCREW DIAMETER/TYPE	Ø 40mm x 2	Ø 45mm x 2
Ø 40mm x 2	Ø 45mm x 2
SCREW L/D RATIO	26:1	26:1
26:1	26:1
HEATING CAPACITY	13.2 kw	17.2 kw
13.2 kw	17.2 kw
AUTO THERMO CONTROL	6 zone	2 zone
6 zone	2 zone
BARREL COOLING FAN	1/8 HP x 2	1/8 HP x 4
1/8 HP x 2	1/8 HP x 4
DRIVING MOTOR	AC 20 HP + Inverter	AC 20 HP + Inverter
AC 20 HP + Inverter	AC 20 HP + Inverter
DIE UNIT
DIE DIAMETER	Ø80/175 mm	Ø100/200 mm
Ø80/175 mm	Ø100/200 mm
AIR RING DIAMETER	Ø120/200 mm	Ø150/250 mm
Ø120/200 mm	Ø150/250 mm
HEATING CAPACITY	6.2 kw	10 kw
6.2 kw	10 kw
AUTO THERMO CONTROL	2 zone	3 zone
2 zone	3 zone
COOLING BLOWER	3 HP	5 HP
3 HP	5 HP
TAKE-UP UNIT
TAKE-UP ROLLER	1000 mm	1100 mm
1000 mm	1100 mm
EFFECTIVE WIDTH	900 mm	1000 mm
900 mm	1000 mm
TAKE-UP MOTOR	AC 1/2 HP	AC 1/2 HP
AC 1/2 HP	AC 1/2 HP
TAKE-UP SPEED	70 m/min	70 m/min
70 m/min	70 m/min
ELEVATING MOTOR	AC 1/2 HP	AC 1/2 HP
AC 1/2 HP	AC 1/2 HP
WINDING UNIT
ROLLER WIDTH	1000 mm	1100 mm
1000 mm	1100 mm
WINDING WIDTH	900 mm	1000 mm
900 mm	1000 mm
WINDING MOTOR	DC 1 HP	DC 1 HP
DC 1 HP	DC 1 HP
MACHINE DIMENSION	450x200x400 cm	470x220x450 cm
450x200x400 cm	470x220x450 cm

* Remark: The above machine specification and production range can be changed without any notice due to kind of different application.
