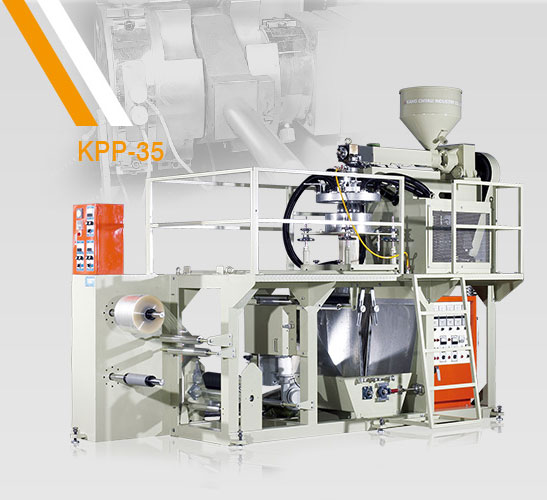

P.P. HIGH SPEED PLASTIC INFLATION MACHINE

MODEL	KPP-35
KPP-35
SUITABLE MATERIAL	P.P.
P.P.
FILM THICKNESS	0.02-0.10 mm
0.02-0.10 mm
FILM WIDTH RANGE	300 mm
300 mm
FILM OUTPUT	12-18 kgs/hr
12-18 kgs/hr
EXTRUDER UNIT
SCREW DIAMETER/TYPE	Ø 35 mm
Ø 35 mm
SCREW L/D RATIO	28:1
28:1
HEATING CAPACITY	6 kw
6 kw
AUTO THERMO CONTROL	3 zone
3 zone
BARREL COOLING FAN	1/16 HP x 1
1/16 HP x 1
DRIVING MOTOR	AC 10 HP + Inverter
AC 10 HP + Inverter
DIE UNIT
DIE DIAMETER	Ø120 mm
Ø120 mm
AIR RING DIAMETER	Ø200 mm
Ø200 mm
HEATING CAPACITY	2.6 kw
2.6 kw
AUTO THERMO CONTROL	2 zone
2 zone
COOLING BLOWER	1 HP
1 HP
WATER RING	10 pcs
10 pcs
TAKE-UP UNIT
TAKE-UP ROLLER	400 mm
400 mm
EFFECTIVE WIDTH	300 mm
300 mm
TAKE-UP MOTOR	AC 1/2 HP
AC 1/2 HP
TAKE-UP SPEED	40 m/min
40 m/min
WINDING UNIT
ROLLER WIDTH	400 mm
400 mm
WINDING WIDTH	300 mm
300 mm
WINDING MOTOR	DC 1／2 HP
DC 1／2 HP
MACHINE DIMENSION	300x100x350 cm
300x100x350 cm

* Remark: The above machine specification and production range can be changed without any notice due to kind of different application.
