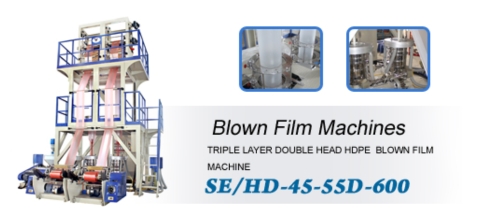

TRIPLE LAYER DOUBLE HEAD HDPE BLOWN FILM MACHINE
TRIPLE LAYER DOUBLE HEAD HDPE BLOWN FILM MACHINE

产品型号:SE/HD-45-55D-600

详细规格及用途描述

●Reduce the cost of raw material.
●Combine the properties of the different raw material.
●Special mold-flow design of cooling air ring.
●We adopt the stacking type of mechanical design in double and triple layer blow film die, and it could keep the die temperature stably.
Introduce the latest design idea.
●Adopt the safety protection design for the whole device.




TRIPLE
LAYER DOUBLE HEAD HDPE BLOWN FILM MACHINE


MODEL
SE/HD-45-55D-600


EXTRUDER
SCREW
DIA.


55 MM
45 MM


DRIVE MOTOR
30 HP
20HP


INVERTER


DIE
φ130
MM A/B/A DIE


TAKE-OFF UNIT
ROLLER
WIDTH


600 MM


TAKE-OFF
MOTOR


1 HP +
INVERTER x 2


WINDING UNIT
SURFACE
FRICTION TYPE


DRIVE MOTOR


0.3 KG-M
TORQUE MOTOR x 2


MACHINE DIMENSION
4.7
x 2.7 x 6.0 M


OUTPUT
60-100
KG/HR


OPTION EQUIPMENT
SURFACE
TREATER


AUTO LOADER


WIDTH
COTROLLER
