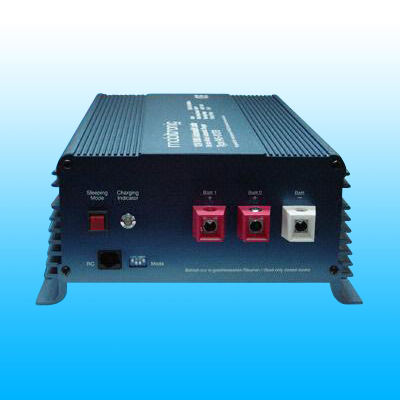

WT-1245-TB/WT-2425-TB Standard Battery Chargers with Short-Circuit Protection

．Battery connections: two

Input voltage range:
115VAC: 98VAC to 132VAC/60Hz
230VAC: 207VAC to 253VAC/50Hz

Charging end voltage:
WT-1245-TB: 14.4V/14.8V
WT-2425-TB: 28.8V/29.6V

Economic charging voltage:
WT-1245-TB: 13.8V
WT-2425-TB: 27.6V

Maximum battery capacity:
WT-1245-TB: 500Ah
WT-2425-TB: 300Ah

．U0 phase limitation: 4 or 8 hours

Maximum charging current:
WT-1245-TB: 45A
WT-2425-TB: 25A

．Operating temperature range: 0 to 50 degrees Celsius
．Dimensions: 230 x 108 x 325mm

Fuse:
115VAC : T12A/250V
230VAC: T6.3A/250V

．Weight: 5.05kg
．Short-circuit protection
．Overload protection
．Reverse polarity protection
．Overtemperature protection
