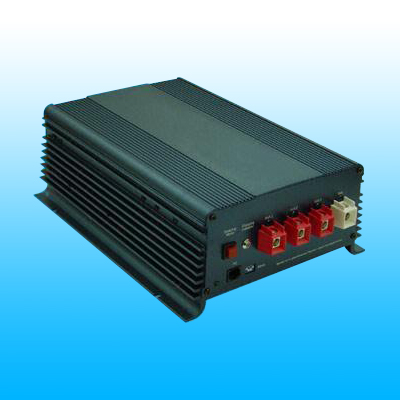

WT-1245-TC/WT-2425-TC Standard Battery Chargers

．Battery connections: three

Input voltage range:
115VAC: 98VAC to 132VAC/50-60Hz
230VAC: 207VAC to 253VAC/50-60Hz

Charging end voltage:
WT-1245-TC: 14.4V/14.8V
WT-2425-TC: 28.8V/29.6V

Economic charging voltage:
WT-1245-TC: 13.8V
WT-2425-TC: 27.6V

Maximum battery capacity:
WT-1245-TC: 500Ah
WT-2425-TC: 300Ah

．U0 phase limitation: 4 or 8 hours

Maximum charging current:
WT-1245-TC: 45A
WT-2425-TC: 25A

．Operating temperature range: 0 to 50 degrees Celsius
．Dimensions: 230 x 108 x 325mm

Fuse:
115V: T12A/250V
230VAC: T6.3A/250V

．Weight: 5.05kg
．Short-circuit protection
．Overload protection
．Reverse polarity protection
．Overtemperature protection
