Switching Power Supply

Switching Power Supply

产品型号:

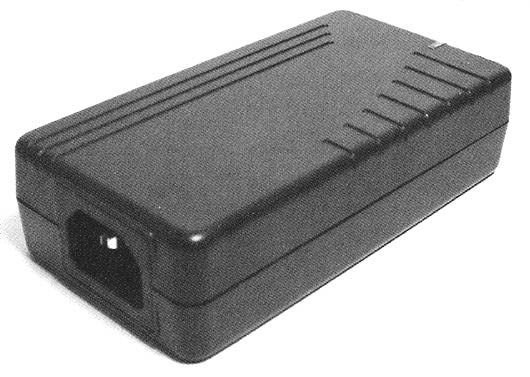

48 Watt External Power Supply

详细规格及用途描述

Features:
Universal input 100 to 240 VAC
Single, output
Overload protection
100% Hi-Pot tested
100% cycling burnt-in

Output Specifications:

Line regulation 1%
Load regulation ±5%
Efficiency 80%
Hold up time 16ms
Transient response Main output 50-100% load 50% duty cycle
Protections: -- Over current -- Over voltage
-- Over power
-- Short circuit protections

Input Specifications:

Input voltage 90 to 264VAC
Input frequency 47 to 63 Hz
Input current 1.2A max.
Inrush current 50A max. @cold start 25°C

Electrical Specifications:

Dielectric strength test input/output: 4242VDC
Leakage current <3.5mA for Class I, <0.25mA for Class II
MTBF Min. 50,000 hours MIL-HDBK-217F

Environmental Specifications:

Operating temperature 0~40°C
Non-operating -20~80°C
Relative humidity non-condensing 10~85%
Convection cooling
Vibration 2.0G, 10-300Hz

Safety:

UL, cUL, ITS/GS, CE
Please contact our sales representative for other safety marks.

Features:
Universal input 100 to 240 VAC
Single, output
Overload protection
100% Hi-Pot tested
100% cycling burnt-in

Output Specifications:

Line regulation 1%
Load regulation ±5%
Efficiency 80%
Hold up time 16ms
Transient response Main output 50-100% load 50% duty cycle
Protections: -- Over current -- Over voltage
-- Over power
-- Short circuit protections

Input Specifications:

Input voltage 90 to 264VAC
Input frequency 47 to 63 Hz
Input current 1.2A max.
Inrush current 50A max. @cold start 25°C

Electrical Specifications:

Dielectric strength test input/output: 4242VDC
Leakage current <3.5mA for Class I, <0.25mA for Class II
MTBF Min. 50,000 hours MIL-HDBK-217F

Environmental Specifications:

Operating temperature 0~40°C
Non-operating -20~80°C
Relative humidity non-condensing 10~85%
Convection cooling
Vibration 2.0G, 10-300Hz

Safety:

UL, cUL, ITS/GS, CE
Please contact our sales representative for other safety marks.
