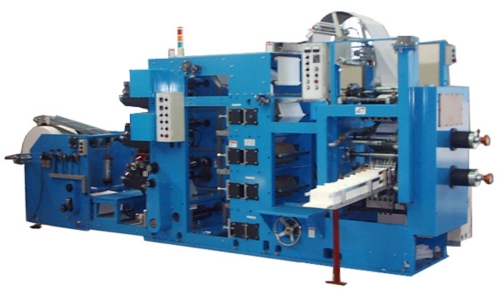

Napkin Paper Machine

Napkin Paper Machine

产品型号:
JY-330A-1T Series
原产地:
台湾

详细规格及用途描述

- Folder Producing a Large Variety of Products

♦This is a quality Napkin Paper Machine which continuously converts tissue, thick & non-woven fabric, or other materials from the parent roll into various shapes as shown below at the rate of 500 ~ 600 sheets/min per lane.


- Fashionable and High Quality Table Napkins

♦This Napkin Paper Machine is a rotary folder to which printing and embossing units are connected to produce beautiful lunch and dinner napkins through continuous processes of printing, embossing, folding and cutting of paper from the parent roll.
♦This equipment is highly regarded in the converting industry for producing high quality table napkins.

No. of Lane: 1 Lane
Folding System: Vacuum
Unfold Size (L x W): 200mm x 200mm ~ 430 x 430mm (select one size or option more sizes)
Folded Size (L x W): As buyer requested
Folded Type: 1/4, 1/6, 1/8, Dispenser Folds
Capacity: 500 ~ 600 sheets/min
Embossing Unit: Can supply 1 ~ 4 sets of steel/paper roll
Flexor-printing Units: Can supply flexor-printing units up to 1 ~ 4 colors.
Converting Web: 1 ~ 3 ply napkins
Parent Roll Width: 200mm ~ 430mm
Parent Roll Diameter: Ø1,500 mm (Max.)
Napkin Paper Machine Option: Edge Guilder Control Device
