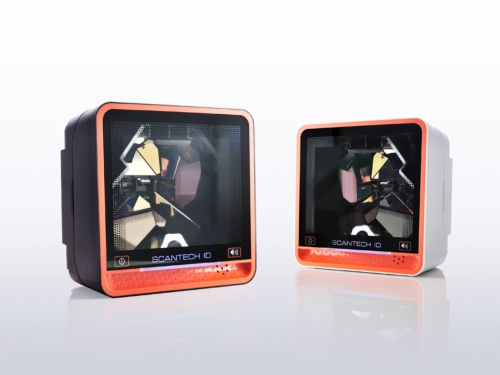

Flexible Presentation Counter Scanner

Descriptions

N-4070 is the continuation of the excellent optical design experience and with a new back-end design, to create an outstanding product performance and reliability. This scanner features high inerrability,flexibility, scanning, and decoding capability. It is ideally suited for supermarkets, pharmacies, petrol stations, and other similar retail stores.
Based on the standard product reliability, the product design concept is fully focused on user’s context and mode. It also reduces time and cost. Our solutions provide instant and accurate scanning, making the checkout process more efficient for you and more convenient for your customers.


Specifications

Performance
◎ Light Source 650 ± 10nm VLD
◎ Depth of Field Up to 250mm@13 mill/0.33 mm, PCS 90%
◎ Scan Pattern 6 directions scan field, 30 lines
◎ Scan Rate 3,000 scans per second
◎ Resolution 5mil / 0.127mm
◎ Print contrast ratio 30%
◎ Indicator Beeper and LED (Stand by Blue, Good read Orange)
◎ Interface RS-232, USB(USB HID or Virtual COM port), Keyboard Wedge, Powered USB
◎ EAS Compatible

Physical
◎ Color Available Black or Beige
◎ Dimensions (WxHxL) 152.02 x 152.07 x 90.22 mm,152.02 x 152.07 x 95.15 mm with back mount
◎ Weight 720g

Electronic
◎ Input Voltage DC +12V@1.5A
◎ Power Consumption 6W
◎ Operating Current 500mA
◎ Standby current 400mA

Environmental
◎ Ambient light Up to 7,000 Lux
◎ Operating temperature 0°C ~ 40°C (32°F ~ 104°F)
◎ Storage temperature -10°C ~ 60°C (14°F ~ 140°F)
◎ Sealing IP42 sealing protection
◎ Symbologies Automatically discriminates major standard 1D bar codes, include GS1 databar - Omnidirectional, Expanded and Limited codes.
