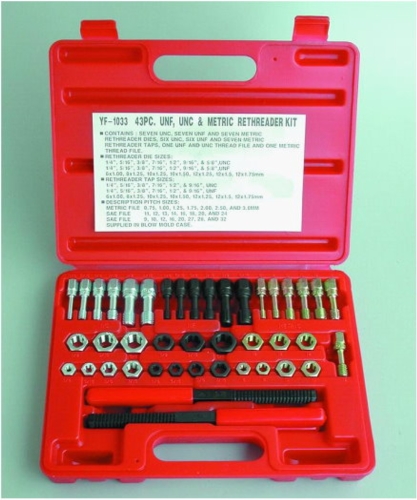

43PC UNF, UNC & METRIC RETHREADER KIT
Hot- 产品型号:
- SK-1033
- 原产地:
- 台湾
详细规格及用途描述
◎CONTAIN: SEVEN UNC, SEVEN UNF AND SEVEN METRIC RETHREADER DIES, SIX UNC, SIX UNF AND SEVEN METRIC RETHREADER TAPS, ONE UNF AND UNC THREAD FILE AND ONE METRIC THREAD FILE.
◎RETHREADER DIE SIZES:
1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 9/16” & 5/8” UNC
1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 9/16” & 5/8” UNF
6X1.00, 8X1.25, 10X1.25, 10X1.50, 12X1.25, 12X1.5, 12X1.75MM
◎ RETHREADER TAP SIZES:
1/4”, 5/16”, 3/8”, 7/16”, 1/2” & 9/16” UNC
1/4”, 5/16”, 3/8”, 7/16”, 1/2” & 9/16” UNF
6X1.00, 8X1.25, 10X1.25, 10X1.50, 12X1.25, 12X1.5, 12X1.75MM
◎DESCRIPTION PITCH SIZES:
METRIC FILE 0.75, 1.00, 1.25, 1.75, 2.00, 2.50 AND 3.0MM
SAE FILE 11, 12, 13, 14, 16, 18, 20 AND 24
SAE FILE 9, 10, 12, 16, 20, 27, 28 AND 32
SUPPLID IN BLOW MOLD CASE
