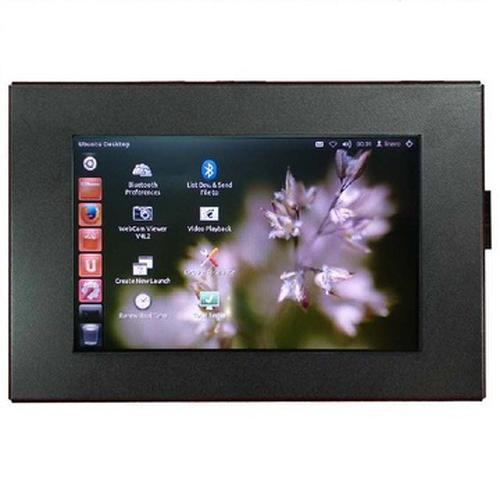

Panel PC (Ubuntu 11.10/Android 4.2)
Panel PC (Ubuntu 11.10/Android 4.2)

产品型号:EX-9686U-L/A-L (Ubuntu 11.10/Android 4.2)

详细规格及用途描述

High-performance ARM quad-core single board computer.
Low power consumption. _ Multi-core options.
Rich interfaces, supports I2C, GPIO.
9V_36V wide range power input.
Over voltage protection (optional.
Quad-band WCDMA (3G) module (optional.
Display Interface : 1 x TTL LCD connector,1 x LVDS connector (20channels),1 x HDMI 1.4 connector.
Touch Interface : 1 x 4-wire RTP connector,1 x CTP connector.
I/O interfaces : 1 × (2 × 4 header) console port,1 x (1 x 3 header) I2C Master port,1 x (2 x 10 header) 8-bit GPIO.
Optional functions : 1 x CAN bus port + additional 8 ━ bit GPIO + over voltage protection + over current protection.
Option modules : 802.11 b/g/n Wi-Fi module,Bluetooth module,4-ch AV-in (NTSC/PAL)video capture module,4 x RS232/RS485 port module.
