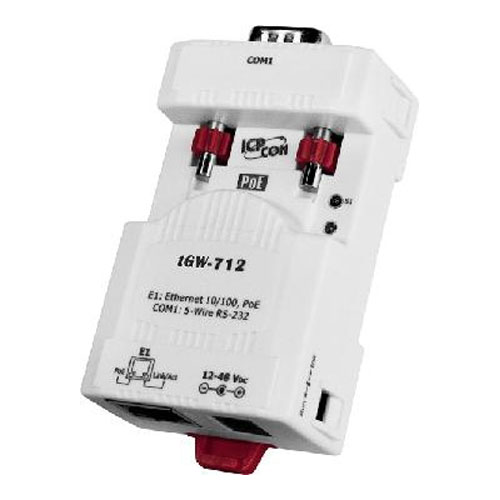

Tiny Modbus/TCP to RTU/ASCII Gateway with PoE and 1 RS-232 Port
Tiny Modbus/TCP to RTU/ASCII Gateway with PoE and 1 RS-232 Port

产品型号:tGW-712

详细规格及用途描述

Cost-effective Modbus/TCP to RTU/ASCII Gateway Supports Modbus/TCP master and slave Supports Modbus RTU/ASCII master and slave Contains a 32-bit MCU that efficiently handles network traffic 10/100 Base-TX Ethernet, RJ-45 x 1 (Auto-negotiating, auto MDI/MDIX, LED Indicators) Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC jack Allows automatic RS-485 direction control Supports TCP, UDP, HTTP, DHCP, BOOTP and TFTP protocols Supports UDP responder for device discovery Allows easy firmware update via the Ethernet Contains a tiny Web server for configuration Male DB-9 or terminal block connector for easy wiring Tiny form-factor and low power consumption RoHS compliant with no Halogen Made from fire retardant materials (UL94-V0 Level)
