手动免扣式钢带捆包机

手动免扣式钢带捆包机

产品型号:
ST-IMA 13-16-19

详细规格及用途描述

TECHNICAL DATA / APPLICATIONS :

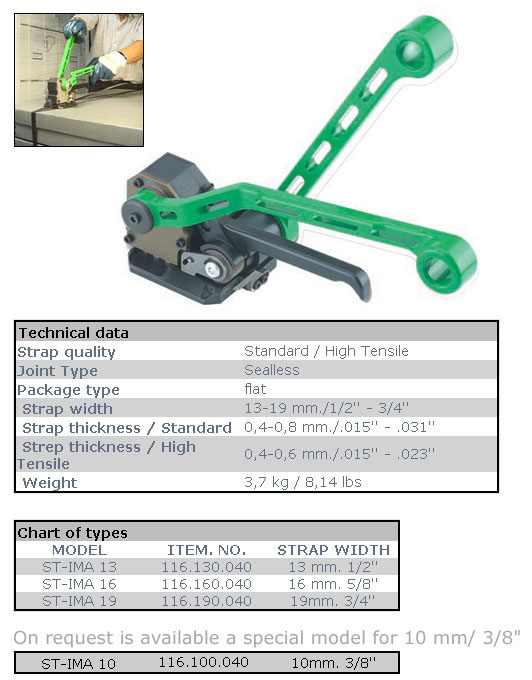

Steel strapping tool easy use and adjusting system. Reliable to use in medium / heavy industrial duty applications. Available standard on 16mm (5/8") is also complete with 13mm (1/2") and 19mm(3/4") strap guides included into the box.
For heavy duty applications is also standard the IMA G version equipped by steel made tension lever and rear feedwhell protection

Package type: Flat (minimum 150mm-6")
Minimum diam.: For round pack 1000mm (40")
Joint type: Sealless
Strap quality: Bright-blue-high tensile Rmax.=1100 N/mm2
Strap Width: from 13mm(1/2") up to 19mm (3/4")
Strap thickness Rmax=850 N/mm2: From 0,45mm up to 0,7mm (0.018"-0.028")
Strap thickness Rmax=1100 N/mm2: From 0,45mm up to 0,63mm (0.018"- 0.025")
Max. tension / Gear ratio: Around 500 Kg on strap / around 1: 17
Weight Around: 4 Kg / Around 4,5 Kg for IMA G
Order code IMA: 116.160.040
Order code IMA G: 117.160.040

•ERGONOMIC AND MODERN DESIGN
•LIGHT AND COMPACT
•EFFICIENT SEAL
•LOW FORCE TO OPERATE
•EASY TO USE
