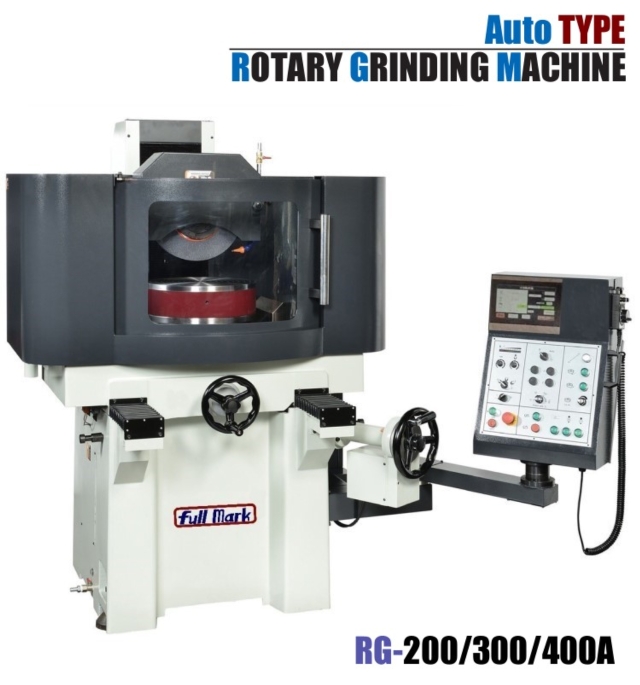

Auto type Rotary Table Surface Grinder (200~400mm)

Auto type Rotary Table Surface Grinder (200~400mm)

Hot
产品型号:
RG-200A ; RG-300A ; RG-400A
原产地:
台湾

详细规格及用途描述

FEATURES :
◆ Handfeed and Auto continuous in cross axis
◆ Y & Z axes with ball screw to be smooth in precision grinding
◆ Vertical Auto down Feed for greatly increasing operational convenience
◆ Equipped with Auto lubrication system for standard
◆ Auto speed change on Rotary Table for grinding evenly
◆ AC Servo Motor & M.P.G. Hand Wheel for Y & Z axes provide high accuracy and convenient operating
◆ Variable speed wheel Head of RG-Series are driven by inverter motor

Target Applications :
◆ Precision Mold Manufacturing: Ideal for precision grinding of cylindrical parts, such as molds and hydraulic cylinders.
◆ Metalworking Job Shops: Suitable for high-volume grinding of small to mid-sized components with consistent quality.
◆ Training Centers & R&D Facilities: Clear operational structure makes it a great tool for training and precision testing.

RG‑200~400A combines automation, multi-axis precision control, and variable-speed rotary grinding to deliver reliable performance with high accuracy. It is well-suited for industries requiring stable repeatability and fine surface quality.

Auto type Rotary Table Surface Grinder (200~400mm)
