卧式加工中心机
Hot- 产品型号:
- Horizontal Machining Center(UHM-800TA Series)
- 原产地:
- 台湾
详细规格及用途描述

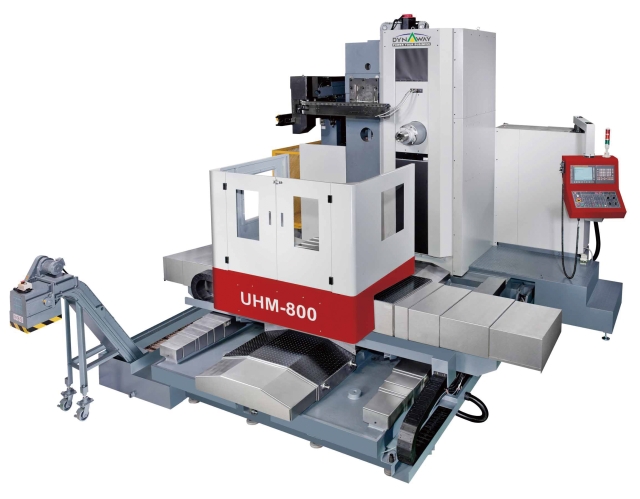

Model: UHM-800TA
Table size(2 Pallets): 800 x 800mmAPC(1º Indexing)
Table load: 2500kg
X / Y / Z axis travel: 1600(2000) x 1000 x 1200mm
Spindle center to surface of table: 0-1000mm
Spindle nose to table center: 200-1400mm
Spindle nose taper: BT50
Spindle speed: 6000(8000)RPM
Spindle motor: 15/18.5kw(22/26kw)
Rapid on X/Y/Z axis: 20M(Min.)
Cutting feed rate: 1-5000mm/min.
Tool store capacity: 40(60) tools
Power requirement: 45KVA
Machine net weight: about 24000kg
