电子锁Key Switch LockS
- 产品型号:
- S613S
- 原产地:
- 台湾
- 材质:
- 锌合金锁壳 与锁心
- 颜色:
- Chrome plated
详细规格及用途描述

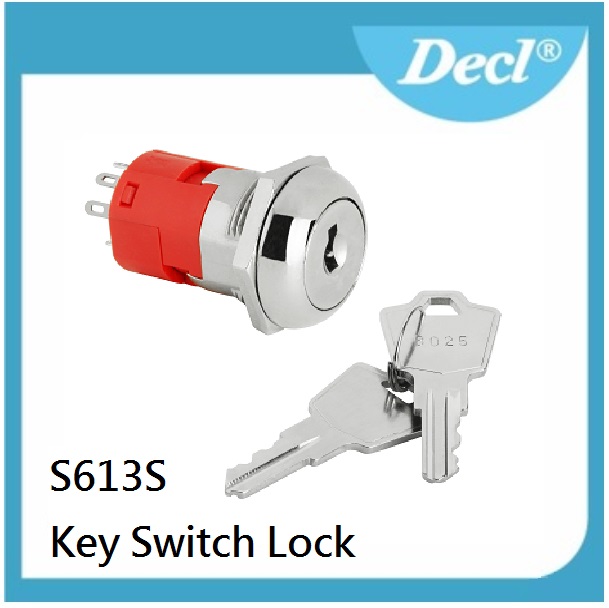

Product Name:Switch Lock S613S
Contact Rating: 4A 125VAC , 2A 250VAC.
Operation Temperature :-20℃~70℃
Contact Resistance : Below 20 Milli-Ohms AT 2~4VDC/100 Milli Ampere between teminal to terminal
Insulation Resistance: 100 Meg-Ohms (Min)
Dielectric Strength: 1000 VRMS(Min)
MATERIALS
1. Zinc alloy die cast housing and cylinder Chrome plated.
2. 5 - Disk Tumber Mechanism.
3. Reversible double cut key, brass made nickle plated.
4. Silver plated contacts and terminals.
5. Master keyed available to order.
