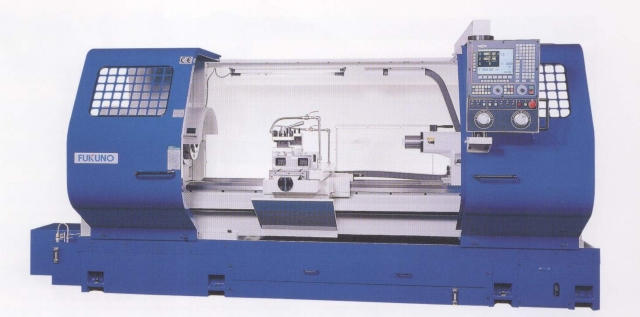

CNC车床

CNC车床

产品型号:
FL-3060/3080/30120

详细规格及用途描述

Description:
MODEL FL-3060 FL-3080 FL-30120
Swing over bed (mm/inch) Ø770/30.3"
Swing over cross slide (mm/inch) Ø480/18.9"
Center height (mm/inch) 385mm/15"
Distance between center (mm/inch) 1500/60" 2000/80" 3000/120"
Width of bed (mm/inch) 480/18.9"
Spindle speeds-4 steps (rpm) H1: 541~1200
H2: 166~540
L1: 76~165
L2: 25~75
Spindle nose A111 D111
Spindle bore (mm/inch) Ø 104/4.1"
Chuck size (inch) 15"
Longitudinal working stroke-Z axis (mm/inch) 1500/60" 2000/80" 3000/120"
Cross slide working stroke-Z axis (mm/inch) 400/15.7"
Topslide width (mm/inch) 140/5.5"
Size of toolpost shank (mm/inch) 32x32 / 1.3"x1.3"
Tailstock diameter (mm/inch) Ø 105/4.1"
Tailstock travel (mm/inch) 150 / 6"
Tailstock taper MT5
Spindle motor 20HP 25HP(optional)
Drives (X,Y) AC SERVO
Rapid traverse X/Z 5/10 m/min (200/400 ipm)
Range of feeds in manual mode 0.01~500 mm/rev
0.004~19.68 in./rev
Coolant pump motor 1/4 HP
Machine weight (kg/lbs) 5200/11400 5700/12540 6700/14740
Packing Measurement 3060: 3985x2240x2220/157"x88"x87.4"
  3080: 4485x2240x2220/176.6"x88"x87.4"
  30120: 5485x2240x2220/216"x88"x87.4"

相关产品
公司名称: 福野工业股份有限公司
电话: 886-4-9251-0595
传真: 886-4-9251-1879
网址: www.fukunoseiki.com.tw
www.cens.com/fukuno

发送询问函给厂商
