CONVENTIONAL LATHE
CONVENTIONAL LATHE

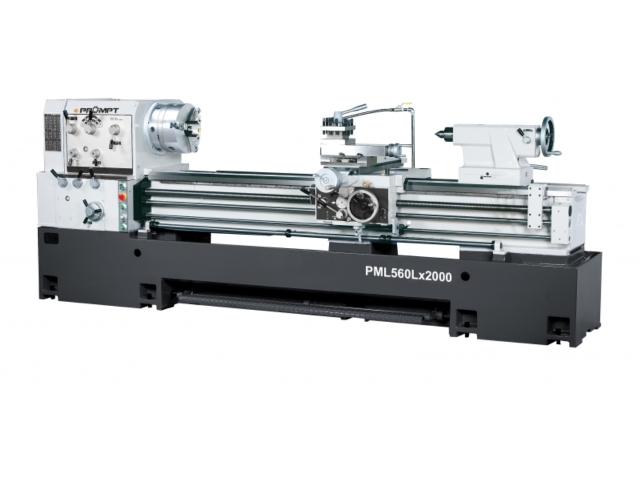

产品型号:PML-560LX2000

详细规格及用途描述

Model PML 560L Series
Specifications 2240.2260.2280.22100.22120.22160
Swing Over Bed 560 mm (22")
Swing Over Cross Slide 340 mm (13-1/3")
Center Hight 280 mm (11")
Center Distance (mm) 1000.1500.2000.2500.3300.4300 (40".60".80".100".132".172")
Swing Over Gap 788 mm (31")
Bed Width 400 mm (15-3/4")
Spindle Nose ASA D1-8 / D1-11 (Opt.)
Spindle Bore 85 mm (3-1/3") / 120 mm (4-1/2") (Opt.)
Taper of Spindle Bore MT #7
Spindle speed 15~1500 rpm (12 steps)-spindle bore:85mm /
10~1000 rpm (12 steps)-spindle bore:120mm
Inch Threads Range 2~56 TPI
Metric Threads Range P0.5-14
Longitudinal Feeds Range 0.05~0.82 mm (0.002~0.032")
Cross Feeds Range 0.02~0.4 mm (0.001~0.0094")
Leadscrew Diameter 38 mm (1-1/2")
Leadscrew Pitch 4 TPI or 6 mm
Taper of Tail Center MT 5
Tail Spindle Travel 165 mm (6-1/2")
Tail Spindle Diameter 85 mm (3-1/3")
Main Drive Motor 10HP (7.5KW) /
15HP / 6P (11KW. Opt.)
Coolant Pump 1/8HP (0.1KW)
Compound Rest Travel 200 mm (8")
Cross Slide Travel 375 mm (14-3/4")
Machine Dimension (cm)
L: 238.290.347.398.473.555
W: 103
H: 126

Packing Dimension (cm)
L: 270.315.361.410.485.588
W: 115
H: 196
Net Weight (kgs) 2200/2550/2900/3150/3650/4860
Gross Weight (kgs) 2300/2650/3050/3300/3800/5060

* The above specifications subject to change without prior notice.
