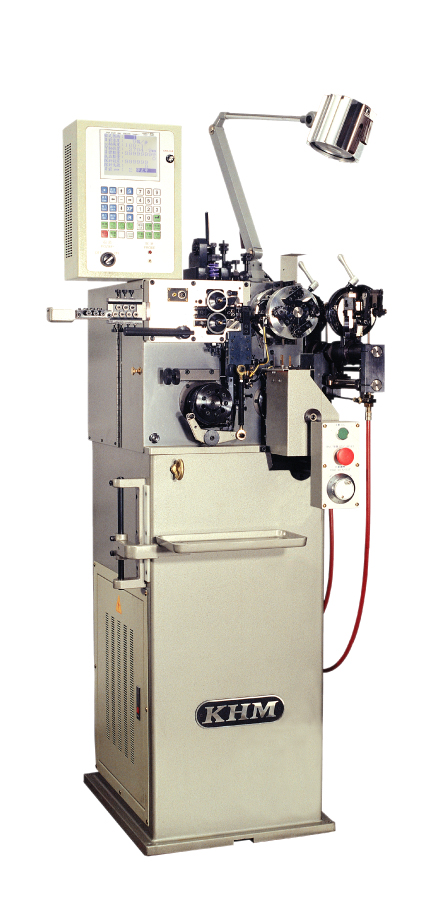

CNC弹簧机

-Wire diameter: 0.15mm-1.0mm
-Body Alignment: The body can be aligned by a cam activated support tool that pushes out the end.
-Initial Tension: This is controlled by the depth of the cam activated coiling tool.
-Straight Leg Formation: It can be done by moving the coil tool up and down.
-Two Types of Cut Off: Rotational cutting and mandrel cut.
-Turn Control: Magnetic touch sensor controls the number of turns precisely.
-Four Step Separator: Assures precision intermittent motion at high speeds.
-Two Grips: One grips over the body portion. The other is to insert a blade between the coils.
-Synchronous Bending: Bending both ends synchronously will give accurate end angles.
-Automatic Selection: Two sensors inspect both hooks and sort for good and bad springs.
-Automatic stop functions for safety operation by present counter, decoiler fail, invalid cut, magnetic touch and bad spring counter.
