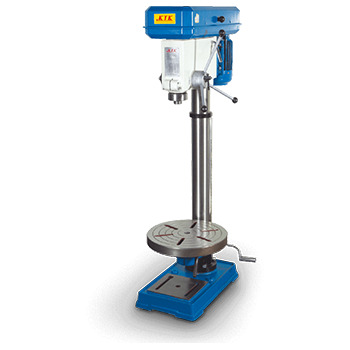

Manual Drilling Machine Round Table
- 产品型号:
- LG-25A
详细规格及用途描述
| Model | LG-13 | LG-16 | LG-25B | LG-25A |
|---|---|---|---|---|
| Max. Drilling Capacity | 13mm | 16mm | 20mm | 25mm |
| Spindle Taper | JT6 | MT2 | MT3 | MT3 |
| Spindle Travel | 80mm | 100mm | 120mm | 140mm |
| Spindle Speed | 520-2230 | 240-2840 | 230-1910 | 230-1910 |
| Quill Feed | Manual | Manual | ||
| Number of Speed | 4 | 9 | 9 | 9 |
| Swing | 360mm | 360mm | 460mm | 460mm |
| Column Diameter | 80mm | 80mm | 92mm | 102mm |
| Table Diameter | 320mm | 320mm | 420mm | |
| Base Diameter | 300x500mm | 300x500 | 335x580 | 380x600mm |
| Spindle to Table Distance | 450mm | 450mm | 720mm | 630mm |
| Spindle to Base Distance | 620mm | 620mm | 920mm | 930mm |
| Motor | 1/2HP | 1 | 2HP | 2HP |
| Overall Height | 1070mm | 1070mm | 1500mm | 1540mm |
| Weight | 75kg | 90kg | 140kg | 190kg |
