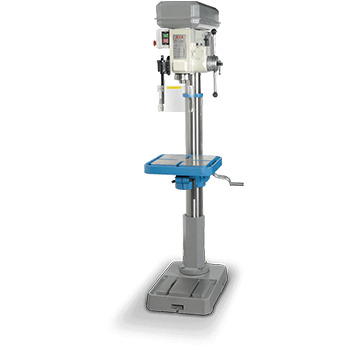

Auto Feed Drilling Machine
- 产品型号:
- SB-250
详细规格及用途描述
| Model | TB-120 | SB-250 |
|---|---|---|
| Max. Drilling Capacity | 16mm | 25mm |
| Spindle Taper | MT2 | MT3 |
| Spindle Travel | 80mm | 140mm |
| Spindle Speed | 180mm | 230mm |
| Quill Feed | Automatic | |
| Number of Speed | 4 | 6 |
| Swing | 480-1980 | 200-1600 |
| Column Diameter | 80mm | 102mm |
| Table Diameter | 300x300mm | 400x400mm |
| Base Diameter | 450x310mm | 600x380mm |
| Spindle to Table Distance | 420mm | 730mm |
| Spindle to Base Distance | 620mm | 1270mm |
| Motor | 0.75kw | 1.5kw |
| Overall Height | 1060mm | 1800mm |
| Weight | 100kg | 220kg |
