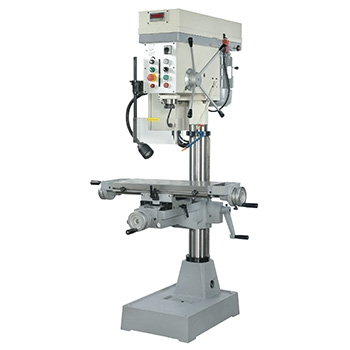

MP-40EV Inverter Variable Speed Drilling & Tapping Machine

MP-40EV Inverter Variable Speed Drilling & Tapping Machine

产品型号:
MPT-40EV

详细规格及用途描述

ModelMP-40EVMPA-40EVMPT-40EV
FunctionDrillingDrilling & Tapping
Max. Drilling Capacity40mm40mm40mm
Max. Tapping Capacity--M24
Spindle TaperMT4
Spindle Stroke130mm
Quill FeedManual
0.06-0.1-0.1mm
Automatic
0.06-0.1-0.1mm
Manual
0.06-0.1-0.1mm
Spindle Speed
(H)
(L)
270-470-730-1260-1590 rpm
136-235-366-795rpm
Column Diameter120mm
Spindle to Column300mm
Table Diameter
(TG)
(TM)
(TC)
300x400mm
330x400/5"Vise
255x630mm
Table Travel
(TC)
X-axis:425mm
Y-axis:200mm
Z-axis:500mm
Spindle to Table
(TG/TM)
(TC)
280-785mm
140-640mm
Base Diameter450x670mm
Motor(2-speed)1.1/2.2kw
Coolant0.125kw
LED Light24V
Overall Height1880mm
Weight380kgs
