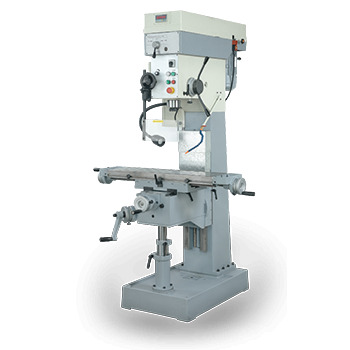

MPS-45G Drilling-Milling Machine

MPS-45G Drilling-Milling Machine

产品型号:
MPS-45GEV

详细规格及用途描述

ModelMPS-45GMPS-45GEV
FunctionDrilling & Milling
Max. Drilling Capacity45mm
Spindle TaperMT4
Spindle Stroke130mm
Quill FeedAutomatic
0.06-0.1-0.2mm
Automatic
Spindle Speed
(H)
(L)
2-Speed Gear Box
8-Speed
325-582-965-1658rpm
54-97-160-276rpm
2-Speed Gear Box
Inverter Variable Speed
430-1720 rpm
70-280 rpm
Column DiameterSquare
Spindle to Column325mm
Table Diameter260x890mm
Table Travel
(TC)
X-axis:440mm
Y-axis:299mm
Z-axis:480mm
Spindle to Table170-650mm
Base Diameter895x560mm
Motor2.25kw
Coolant0.125kw
LED Light24V
Overall Height2070mm
Weight850kgs
