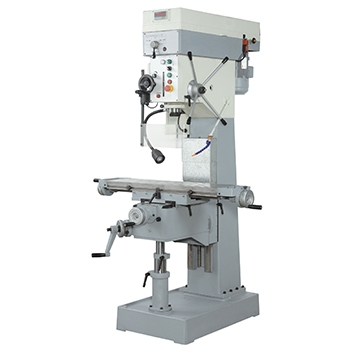

![MPTS-45G Drilling-Milling&Tapping Machine MPTS-45G Drilling-Milling&Tapping Machine](https://www.cens.com/cens/supplier/9631/product/183333/BIG.jpg?xxx=1720828932389)
MPTS-45G Drilling-Milling&Tapping Machine
- 产品型号:
- MPTS-45G/MPTS-45GEV
详细规格及用途描述
Model | MPTS-45G | MPTS-45GEV |
---|---|---|
Max. Drilling Capacity | 45mm | |
Max. Tapping Capacity | M26 | |
Spindle Taper | MT4 | |
Spindle Stroke | 130mm | |
Quill Feed | Manual | |
Spindle Speed (H) (L) | 2-Speed Gear Box 8-Speed 325-582-965-1658rpm 54-97-160-276rpm | 2-Speed Gear Box Inverter Variable Speed 430-1720 rpm 70-280 rpm |
Column Diameter | Square | |
Spindle to Column | 325mm | |
Table Diameter | 260x890mm | |
Table Travel (TC) | X-axis:440mm Y-axis:299mm Z-axis:480mm | |
Spindle to Table | 170-650mm | |
Base Diameter | 895x560mm | |
Motor | 2.25kw | |
Coolant | 0.125kw | |
LED Light | 24V | |
Overall Height | 2070mm | |
Weight | 850kgs |
