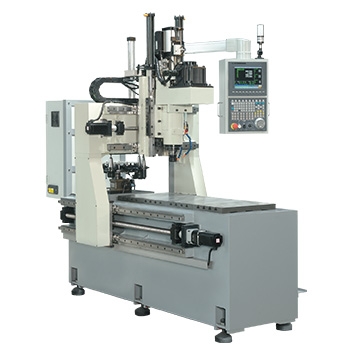

CNC Gantry Drilling-Milling-Tapping Machine

CNC Gantry Drilling-Milling-Tapping Machine

产品型号:
CNC-GNT40EV

详细规格及用途描述

ModelCNC-GNT-40EV
Table Working Area1200 x 450mm
Max. Drilling Capacity25mm
Max. Milling Capacity100mm
Max. Tapping CapacityM16
X/Y/Z Axis TravelX-axis:1150mm
Y-axis:+240/-210mm
Z-axis: 250mm
Gantry SizeWidth:750mm
Height:285mm
Spindle T table200-450mm
Max. Spindle Speed3000rpm
Max. Moving SpeedX-axis: 10000mm/min.
Y-axis: 5000mm/min.
Z-axis: 8000mm/min.
CNC SystemSYNTEC
Spindle Servo Motor3.75kw
X-Axis Servo Motor0.75kw with 1:3 gear Reducer
Y-Axis Servo Motor0.75kw
Z-Axis Servo Motor0.75kw with 1:3 gear Reducer
T-SlotM12S
Tool SettingUnbrella Tool Magazine (6pcs tool)
Cooling Motor1/4 HP
Machine Dimension2550 x 1000 x 2150mm
Weight2200kgs
