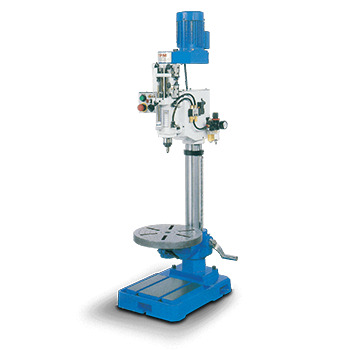

Pneumatic Drilling Machine

Pneumatic Drilling Machine

产品型号:
P-360A

详细规格及用途描述

ModelP-360AP-360P-5100AP-5100P-6150
Max. Drilling Capacity6mm10mm16mm
Spindle TaperJT2JT6MT2
Spindle Travel60mm100mm150mm
Stabilizer Travel30mm60mm60mm
Spindle Speed3000.4000.50001000.2000.30001000.1500.2000
Number of Speed333
Swing360mm360mm460mm
Column Diameter80mm80mm92mm
Table Diameter320mm350x550mm320mm450x600mm600x800mm
Base Diameter 330x510mm-330x510mm--
Spindle to Table Distance 400mm100-400mm400mm100-400mm100-700mm
Spindle to Base Distance 600mm-600mm--
Motor1/2HP1HP2HP
Pneumatic Power kg/cm25kg/cm25kg/cm25kg/cm2
Overall Height1350mm1600mm1350mm1600mm1800mm
Weight90kg210kg100kg230kg350kg
