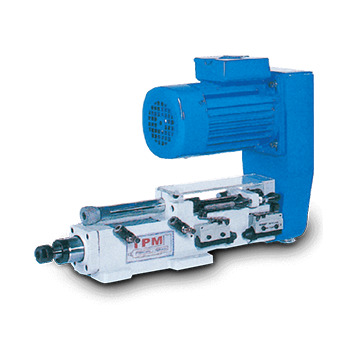

Pneumatic Peck Feed Drilling Unit
- 产品型号:
- P-30-60H
详细规格及用途描述
| Model | P-30-60H | P-50-100H | P-60-150H |
|---|---|---|---|
| Capacity | 6mm | 10mm | 16mm |
| Spindle Stroke | 60mm | 100mm | 70mm |
| Peck Feed Stroke | 25mm | 35mm | 50mm |
| Speed Range(rpm) | 6000-8000-10000(2p) 3000-4000-5000(4p) | 1000-2000-3000 | 1000-2000-3000 |
| Motor | 0.37kw | 0.75kw | 1.5kw |
| Tool Holder | ER16/JT1 | ER20/JT6 | ER25 / MT2 |
| Weight | 22kgs | 22kgs | 62kgs |
