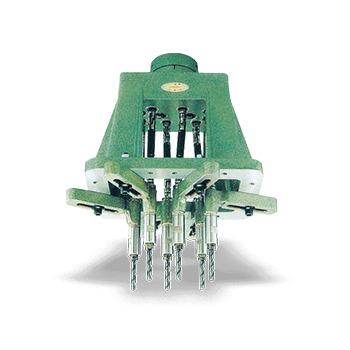

U-Type 3~14 Spindle Unit

产品型号:: U-110x165,U-120x200,U-120x300,U-165x450,U-170x300,U-220x360,U-270x300,U-270x450

Model	Collet	Capacity	Spindle Adjust Range	Spindle No. Available
U-110x165	C-5	5mm	13-100x165mm	3~8
	C-6	6mm	18-100x165mm
	C-9	8mm	28-100x165mm
U-120x200	C-6	6mm	18-120x200mm	4~12
	C-9	8mm	26-120x200mm
	C-12	11mm	28-120x200mm
U-120x300	C-6	6mm	18-120x300mm	4~14
	C-9	8mm	26-120x300mm
	C-12	11mm	30-120x300mm
U-165x450	C-6	6mm	18-160x450mm	6~14
	C-9	8mm	30-160x450mm
	C-12	11mm	30-160x450mm
U-170x300	C-6	6mm	18-170x300mm	6~14
	C-9	8mm	30-170x300mm
	C-12	11mm	30-170x300mm
U-220x360	C-6	6mm	18-220x360mm	6~14
	C-9	8mm	30-220x360mm
	C-12	11mm	30-220x360mm
U-270x300	C-6	6mm	18-270x300mm	6~14
	C-9	8mm	30-270x300mm
	C-12	11mm	30-270x300mm
U-270x450	C-6	6mm	18-270x450mm	6~14
	C-9	8mm	30-270x300mm
	C-12	11mm	30-270x300mm
