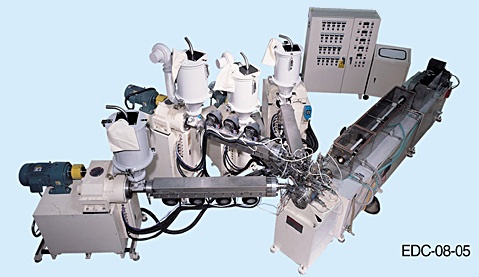

Multi-Layer Extruder & Cutting Machine
Multi-Layer Extruder & Cutting Machine

产品型号:EDC-08-05

详细规格及用途描述

THE FEATURES OF CO-EXTRUSION TUBE:
Plastic material has its own characters. In co-extrusion system, we use and combine several kinds of material. Therefore, the complex characters of co-extrusion tube are expected to obtain from common material.
1.Glossy surface(using:EVOH / BOND / PE)
2.Scratch and dust free (using:NY / BOND / PE)
3.Extensive colour combination(using:PE + COLOR)
4.Excellent barrier property(using:PE / BOND / EVOH / BOND / PE)
5.ESC resistence(using:LDPE / LDPE / LLDPE)
Co-extrusion is to be used on pesticide container, toothpaste, side window, multicolor, long preservative cosmetic... and so on.
MAIN SPECIFICATIONS:
1.Screw Dia(inner) : Ø50 mm, L/D : 30/1
2.Screw Dia(resin) : Ø40 mm, L/D : 28/1
3.Screw Dia(evoh) : Ø35 mm, L/D : 26/1
4.Screw Dia(outer) : Ø45 mm, L/D : 32/1
5.Screw Type : Full Flight
6.Water Consumption : 60 L/min, 24~27°C
7.Power Consumption : 60kw
8.Extrusion Linear Speed : 6~8 m/min
9.Cutting Speed : 60 pcs/min
10.Tube Dia Range : Ø19~50 mm
11.Machine Size : 7000 X 3000 X 2000 mm
