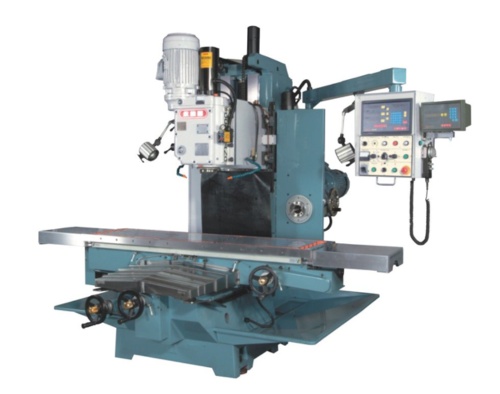

床台型强力铣床

床台型强力铣床

产品型号:
EM-1460G-H

详细规格及用途描述

TRAVEL:
◎Longitudinal travel-x:1400mm
◎Cross travel-Y:600mm
◎Vertical travel-z:600/700/800/900mm
TABLE"
◎Table size:1702×410mm
◎T Solts:4×18×70mm
◎Table load:1200kgs
SPINDLE:
◎Spindle taper:NT50
◎Quill diameter:Ø 128.57mm
◎Spindle speed:60-Hz 90-615(6 steps)50-Hz 72-508
◎Distance from spindle end to eadle:720/820/920/1020mm
◎Distance from spindle center to column:610mm
MOTOR:
◎Main motor:10HP/4P
◎X, Y, Z axis servo motors : 4.5 Nm
◎Coolsnt pump : 1/8 HP

床台型强力铣床
