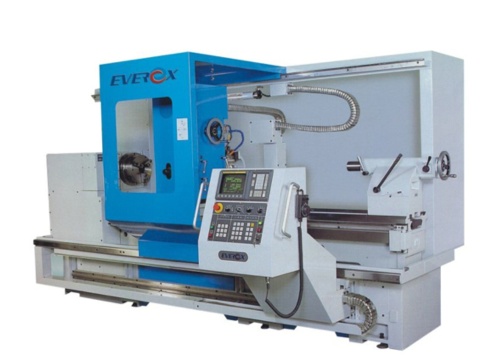

CNC螺杆切削专用机

CNC螺杆切削专用机

产品型号:
LM-1500

详细规格及用途描述

Swing over bed:720mm
Swing over cross slide:370mm
Distance between:1600mm
Width of bed:410mm
Spindle bore:Ø 130 mm
A axis speed:4000/min
A axis servo motor:11Nm
Milling head:NT50#
Main motor:5.5/3.75kw
Spindle speed:300-1000RPM
Y axis travel(manual):50mm
Support clamping capacity:Ø 30-140mm
X axis travel:1500mm
Z axis travel:250mm
Servo motor:X=11Nm Z=11Nm
Rapid traverse:5000mm/min
Feed rate:1-5000mm/min
Quill diameter:Ø 80mm
Tailstock spindle travel:180mm
Taper of center:5#
X axis ball screw:Ø 50mm P=10mm
Y axis ball screw:Ø 32mm P=5mm
CNC control:FANUC Oi-MB
Control axes:3
