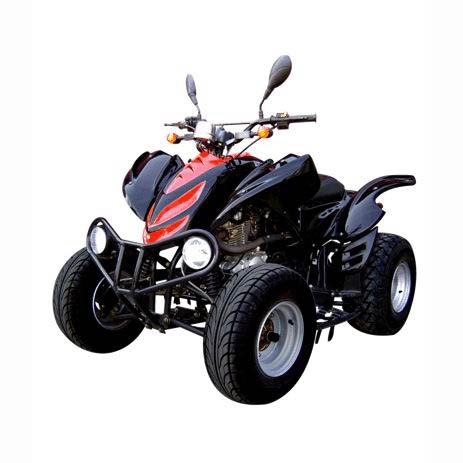

ATV

ATV

产品型号:
XF300ATV - 10

详细规格及用途描述

Specs : No Item Description
1 Dimension (LxWxH) 1900x1050x1350mm
2 Proper Mass of Empty Vehicle 220kg
3 Max speed ≥ 75km / h
4 Climbing Ability ≥ 20°
5 Distance between axles 1255mm
6 Distance between front wheels 810mm
7 Distance between rear wheels 850mm
8 Ground clearance 150mm
9 Specification of Front Wheel 21×8-10
10 Specification of Rear Wheel 22×10-10
11 Type of Engine 4-stroke, single cylinder
12 Cylinder Bore x Stroke 78mmX61.2mm
13 Efficient Capacity 292ml
14 Rated Power and Rotate Speed 13. 5KW / 7000r / min (18.4HP)
15 Max Torque and Rotate Speed 20N.m / 6000r / min
16 Compressing Ratio 8. 9 : 1
17 Gearshift Mode Five Speed / shaft drive / reverse
18 Starting System Electrical Starting
19 Cooling System Air Cooling
20 Fuel tank 7. 5L
21 Package Measure 1900×1150×870mm
22 Gross weight 250KG
23 Front / Rear brake DISC / DISC
24 Loading 20' -12; 40HQ-36
