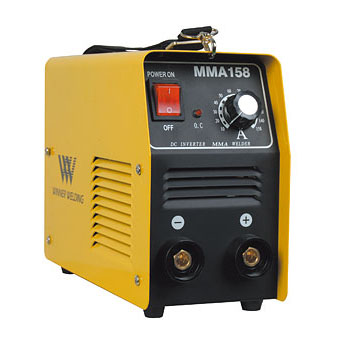

DC Inverter ARC Welding Machine

DC Inverter ARC Welding Machine

产品型号:
MMA-158
原产地:
台湾

详细规格及用途描述

Function and feature
* Light weight, high quality, stable arc.
* Suitable for welding of low carbon steel, cast iron, low alloy steel and stainless steel.
* Adapt to SMAW and simplified tig welding, the arc-500 and arc-600 is suitable for arc air gouging.
* Arc power and anti freeze are standard facilities.
* Remote control box can be provided (optional).

Features:
* Compact in volume, light in weight and power saved
* Easy to ARC initiation, resistance to interference, good force adjustment
* Stable welding current, low welding saptter
* Good welding result, deep welding pool, high intension
* Protection for over voltage, over current
* Automatic voltage pulsation compensation capability
* Applicable for various acid and basic welding electrodes
* Down hand cellulose electrode

Main technical parameters:
* Input Voltage/Frequency: 220V±10% 1Ph 50/60HZ
* Rate input power capacity (KVA): 4.6
* Output current range (A): 10~140
* Rate output voltage (V): 25.6
* O.C.V (V): 56
* Duty cycle (%): 100
* Efficency (%): 85
* Weight(kg): 3.6
* Overall dimension (mm): 270x112x185
* No load loss (W): 20
* Diameter of rod (mm): 2~3.2
