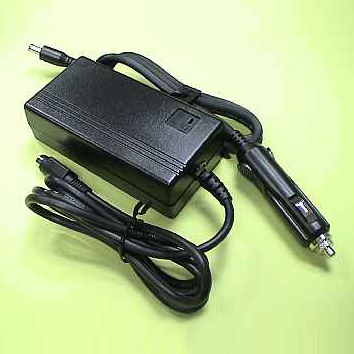

BSD-80-112 12V / 72W Car Adapter
BSD-80-112 12V / 72W Car Adapter

产品型号:BSD-80

详细规格及用途描述

Input
* Input voltage: 12-32Vdc
* Input Frequency: DC
* Input current: 8.0A
* Efficiency: >80% at Full Load

Output
* Output Rating: 72W
* Output Voltage: +12VDC
* Output current: 6.0A
* Line Regulation: 1%
* Load Regulation: 5%
* Ripple & Noise: 1% P-P max

Protection
* Over Voltage Protection
* Short circuit Protection
* Over current Protection
* Input over / undervoltage protection

EMI/RFI:Meets limits:CISPR 22 CLASS B

Input Plug: Cigarette plug cable
Output Plug: As required

Plastic Case

Dimension: 120 X 62 X 35mm

BSD-80-112 12V / 72W Car Adapter
