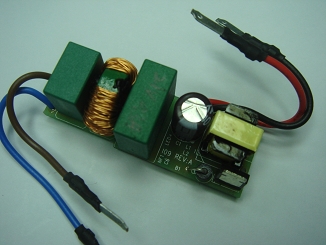

I090球灯泡发光二极体LED驱动器

I090球灯泡发光二极体LED驱动器

产品型号:
I090
原产地:
台湾

详细规格及用途描述

ELECTRICAL SPECIFICATIONS :
INPUT
Input voltage : 100-240Vac
Input frequency : 47 - 63 Hz
Input current : 0.4Arms max.
Efficiency : 85~93% typical at full load


OUTPUT
Output rating : as rating charts
Line regulation : 1%
Load regulation : 5%
Constant current tolerance : 5%
Ripple & noise Vp-p : 10% max.
Output power : as rating chart


ENVIRONMENT
Operating : full load -20-50℃ convection
Non-operating : -20-85℃
Shock : MIL-STD-610C 516 Part V
Vibration : 10-500 Hz. 16 mins/cycle/axis


FEATURE
Low cost
High efficiency
Non-isolated
Small size

DIMENSION : 50x17x20mm

ITEM Model No. Output Io max. Eff.
1 I090-240 18~24V 320mA >85%
2 I090-300 24~30V 270mA >88%
3 I090-360 30~36V 250mA >88%
4 I090-450 36~45V 225mA >90%
5 I090-560 45~56V 200mA >92%
6 I090-680 57~68V 180mA >93%
Remark : Io can be set below the max.
