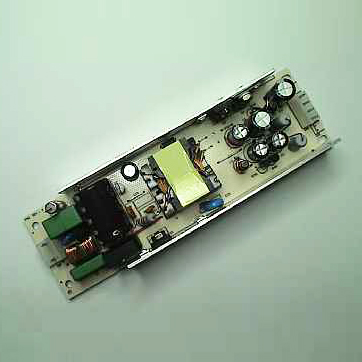

EP-40 40W power supply
EP-40 40W power supply

产品型号:EP-40

详细规格及用途描述

Input
* Input voltage: 90 to 264Vac (Wide range)
* Input frequency: 47Hz ~ 63Hz
* Input current: 1.0A max at 120Vac
* Input inrush current: 40A max. at cold start
* Efficiency: >70% at Full Load
* Protection: 2A fuse on board

Output
* Output rating: 1-3 outputs, see detail spec.
* Line regulation: 1% ITEM
* Load regulation: 5%
* Ripple & noise: 1% P-P max
* Hold-up time: >20mS at full load, 120Vac
* Trainsient response: 10% at 50% load change
* Output power: 40W max.

Protection:
* Over voltage protection
* Short circuit protection
* Over power protection

Dimension: 150 x 45 x 25mm

EP-40 40W power supply
