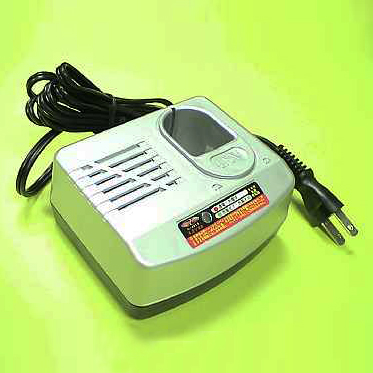

SH-15 4 Cells Battery Charger
SH-15 4 Cells Battery Charger

产品型号:SH-15

详细规格及用途描述

Input
* Input voltage: 90 to 132Vac
* Input Frequency: 47Hz ~ 63Hz
* Input current: 0.4A max at 100Vac
* Inrush current: 25A, cold start, 25℃.
* Efficiency: >70% at fast charge

Output
* Output Volatge: +4.0V ~ +12.6VDC
* Output current: 1.1+-0.15A
* Line Regulation: 1%
* Load Regulation: 5%

LED Indication: Oranage/pending, Red/fast, Green/Complete

Protection
* Over Voltage Protection
* Short circuit Protection
* Over current Protection
* 45 deg. C temperature cut off

Charge Time: 4 ~ 8 cells 1.3AH 1Hr

Dimension: 105 x 88 x 53mm

SH-15 4 Cells Battery Charger
