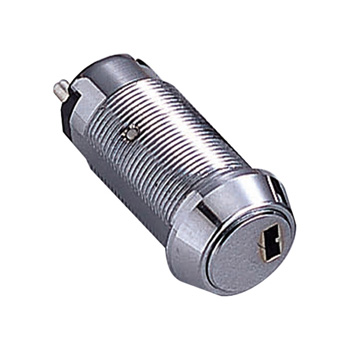

Mains or low voltage
- 产品型号:
- K2230
详细规格及用途描述
Material : Zinc alloy die cast or brass housing and
cylinder ;
Zinc alloy nut ; super hard. copper alloy contacts
Finish : Chrome plated housing and cylinder ;
silver plated nut ; silver plated contacts
Mechanism : 12 pin cylinder(Patent) ;
100,000 combinations
Feature : 2 terminals change-over type
Electrical specification:
Contact rating : 4A 125VAC , 2A 250VAC
Contact resistance : Below 10 million OHMS
Insulation resistance : 500 million OHMS Min.
Dielectric strength : 1000V RMS Min.
