Mains or low voltage
- 产品型号:

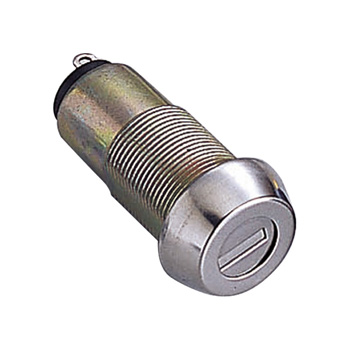

- K2250
详细规格及用途描述
Material : Zinc alloy die cast housing and cylinder ;
dust proof shutter ; rust proof zinc alloy nut
Finish : Silver plated contacts and terminals
Mechanism : 5 disc tumbler cylinder ;
Two durable chrome/nickle-plated
solid brass double-bitted keys going in
either way for easy operation
Feature : 3 terminals change-over type
Electrical specification:
Contact rating : 4A 125VAC , 2A 250VAC
Contact resistance : Below 10 million OHMS
Insulation resistance : 500 million OHMS Min.
Dielectric strength : 1000V RMS Min.
