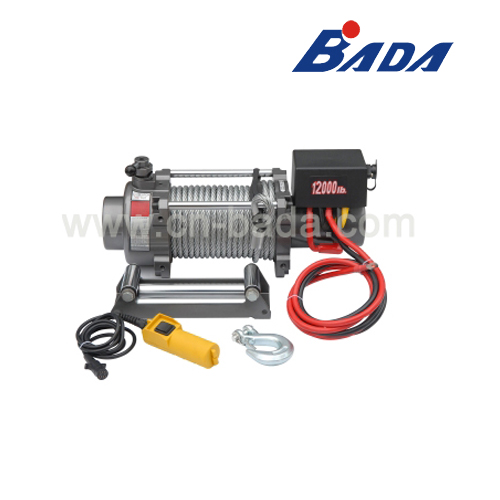

电动绞车
- 产品型号:
- DW12000
详细规格及用途描述
• 12v DC 6.8hp(5.0kw) Permanent magnet motor
• Power load in and Power out
• Full metal 3-stage planetary gear system
• Automatic braking system
• Free-spooling clutch
• Handsaver strap included
• Weather sealed solenoid with ON/OFF
• Sealed handlebar remote
• Heavy-duty 4-way Roller fairlead
• Rated line pull:10000lb.(4545kg);Single-line and First layer performance
• Gear ratio: 402:1
• Wire rope(Dia.xL):0.43”x92’(11.0mmx28m)
• Drum size(Dia.xL):2.83”x8.58”(71x218mm)
• Overall dimensions(LXWXH):
22.8"x7.3"x9.3"(579mmx186mmx236mm)
