High-Efficiency Fully Automatic

High-Efficiency Fully Automatic "T-shirt Bag" Making Machine with Servo-Drive System (Non-Stop)

产品型号:
SPV-850, SPV-1000

详细规格及用途描述

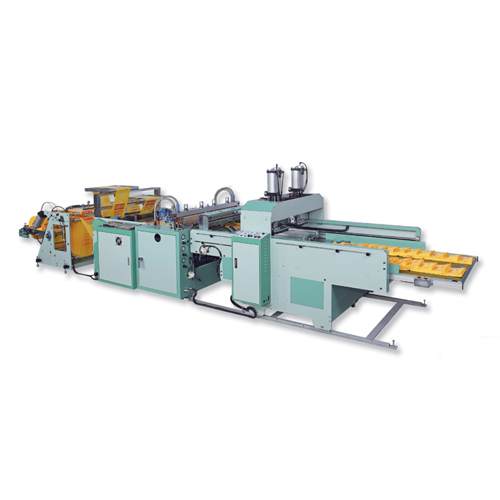

High-Efficiency Fully Automatic
"T-Shirt Bag" Making Machine
Servo-Drive System (Non-Stop)

Model: SPV-850, SPV-1000


Features
_ Micro-computer controller increases speed and accuracy; user-friendly panel for easy operation.
_ Bags can be loaded smoothly and correctly while servo is running in s-curve at high speed.
_ Normal or heating extension mode selections.
_ Specially designed for huge production of non-tension sealed and printrf T-shirt bags.
_ Servomotor bag delivery system is equipped with twin photocell device.
_ Independent three-line temperature control system.
_ Machine stops automatically when bags are jammed, overlapped or printing is in inaccurate positions.
_ Pneumatic / hydraulic-type puncher is adopted on the in-line punching system to ensure each bundle of bags is punched out neatly and quietly.

Model Bag size(mm) Production speed cycle /min Thickness of film(mm) Heaters Power requied Air required
Width Length
SPV-850 Max. 380mm Max. 700mm 230 bags /min(each line) 0.01-0.08 mm 7 KW 14.50 KW 7.5 HP
SPV-1000 Max. 480mm Max. 700mm 230 bags /min(each line) 0.01-0.08 mm 7 KW 14.50 KW 7.5 HP
