Blown Film Machine

Blown Film Machine

產品型號:

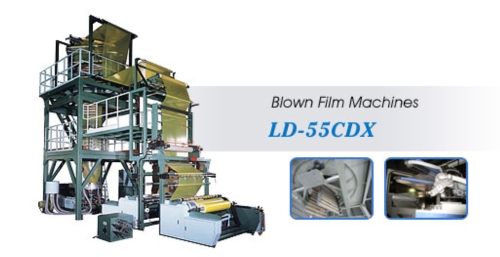

Multi-layer extrusion (SE/LD-55CDX)

詳細規格及用途描述

●Introduce the latest design idea.
●Adopt the safety protection design for the whole device.
●It could be reduced the electricity loss more effective when equipping the inverter control in the whole device.
●Professional, Technology, Service & Quality are doing firstly for us.
●We are the professional manufacturer and experience supplier for blown film machine.

●Extruder can produce single or two layers as per requirement.
●Both take-off unit and winding unit use inverter or servo motor to ensure synchonicity and stability. ●Pinch roller of take-off unit is pneumatic type and operated by solenoid valve for a convenience adjustment.
●Slitting device with several blades to get various film sizes.
●Oscillating take-off unit is equipped with EPC equipment.




Model


SE/LD-55CDX




SE/LD-65CDX




Film width (mm)


1200




1500




Film thickness (mm)


0.02 - 0.15




0.02 - 0.15




Extrusion output (kg/hr)


140




200




Extruder


Diameter (mm)


55




65




L:D ratio


30 / 1




30 / 1




Drive motor (hp)


30




60




Heat capacity (kW)


65




101




Temperature Control (zones)


13




13




Die


SCREEN CHANGER


LONG LIFE FILTER




Lip diameter (mm)


250 / 300




250 / 350




TAKE-UP UNIT












Drive motor (hp)


2




2




Roller width (mm)


O210×1300




O210×1600




GUIDE MOTOR (hp)


2




2




Take-off unit (with elevator)












Drive motor (hp)


2




2




Roller width (mm)


O165×1300




O165×1600




Winding unit


Floor dimensions (m)


11.3 x 3.4 x 7.1




12 x 3.8 x 9.1




Machine weight (kg)


7500




8500




Power required (kW)


120




160
