DC-DC converters
- 產品型號:
- SDC15 / SDC23
詳細規格及用途描述

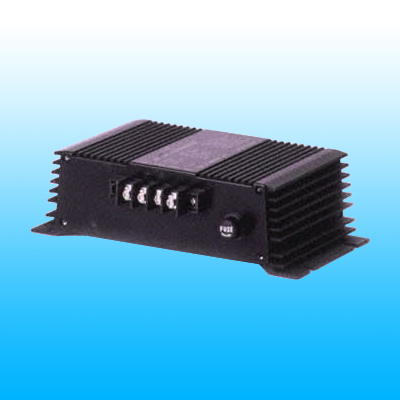

SDC15 / SDC23 DC/DC Voltage Converter (Not for America Use) with Input Voltage Range of 20VDC to 30VDC
DC / DC voltage converter series general properties:
Input voltage: 20VDC to 35VDC
Output voltage: 13.8VDC +/- 0.1VDC
Efficiency: > 88%
Output current:
SDC-15:
Continuous: 12A
Surge: 15A
Current limits: 16A +/- 0.5A
SDC-23:
Continuous: 20A
Surge: 23A
Current limits: 24A +/- 0.5A
