產品型號:WT-1225-TB/WT-2415-TB 原產地:台灣

詳細規格及用途描述

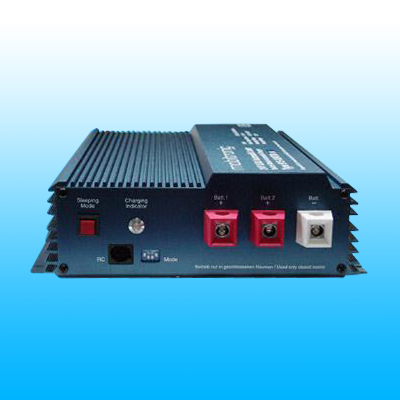

WT-1225-TB/WT-2415-TB Standard Battery Chargers with Two Battery Connections

‧Battery connections: two

Input voltage range:
115VAC: 98VAC to 132VAC/60Hz
230VAC: 207VAC to 253VAC/50Hz to 60Hz

Charging end voltage:
WT-1225-TB: 14.4V/14.8V
WT-2415-TB: 28.8V/29.6V

Economic charging voltage:
WT-1225-TB: 13.8V
WT-2415-TB: 27.6V

Maximum battery capacity:
WT-1225-TB: 300Ah
WT-2415-TB: 200Ah

‧U0 phase limitation: 4 or 8 hours

Maximum charging current:
WT-1225-TB: 25A
WT-2415-TB: 15A

‧Operating temperature range: 0 to 50 degrees Celsius
‧Dimensions: 240 x 77 x 310mm

Fuse:
115VAC: T8A/250V
230VAC: T4A/250V

‧Weight: 3.5kg
