Power Supply

Power Supply

產品型號:

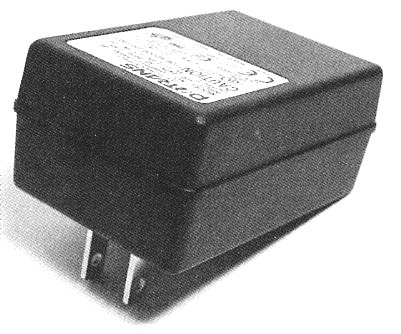

15 Watt External Power Supply

詳細規格及用途描述

Features:
Universal input 100 to 120 VAC
Single, output
Overload protection
100% Hi-Pot tested
100% cycling burnt-in

Output Specifications:

Line regulation 1%
Load regulation ±5%
Efficiency 70%
Hold up time 16ms
Transient response Main output 50-100% load
Protections: -- Over current -- Over voltage
-- Over power
-- Short circuit protections

Input Specifications:

Input voltage 90 to 127VAC
Input frequency 47 to 63 Hz
Input current 0.4A max.
Inrush current 40A max. @250AVC

Electrical Specifications:

Dielectric strength test input/output: 4242VDC
Leakage current <0.25.5mA
MTBF Min. 50,000 hours MIL-HDBK-217F

Environmental Specifications:

Operating temperature 0~40°C
Non-operating -20~85°C
Relative humidity non-condensing 10~95%
Convection cooling
Vibration 2.0G, 10-300Hz

Safety:

USA, CSA

相關產品
公司名稱: 緯岑電子股份有限公司
地址: 231 新北市新店區寶橋路235巷16弄2號6樓
電話: 886-2-2911-0602
傳真: 886-2-2915-7948
E-Mail:
網址: www.woettsern.com

發送詢問函給廠商
