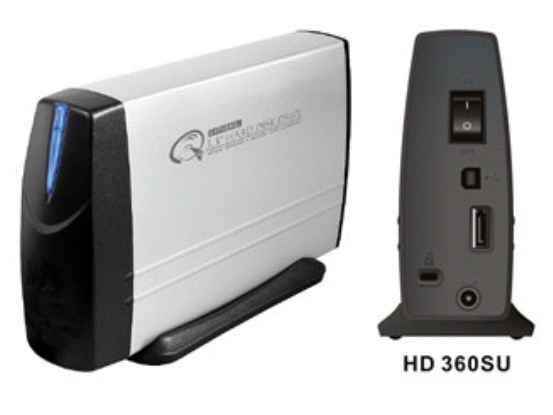

				External 3.5" Hard Disk Drive Enclosure with USB 2.0 + SATA Interface
- 產品型號:
- HD-360SU
詳細規格及用途描述


					Features:
Model#: HD-360SU
High Speed External HDD Solution
High Speed USB 2.0, compliant with the SATA 1.5 Gbyte/sec standard with up to 150 MB/sec burst data transfer rate
Standard 3.5" IDE HDD over 300GB Support
Standard IDE Hard Drive support with single partition over 300GB
Aluminum Casing
Lightweight aluminum casing with Fan-free design
Upright Operation
Sleek and compact design for space saving operation
Plug & Play Compatibility
Compatible with Windows98 SE, ME, 2000, XP and MAC OS 9.x or above
Specifications:
Interface Support:
USB Interface:
USB 2.0 Compliance, up to 480 Mb/s
USB 1.1 Compliance, up to 12 Mb/s
Serial ATA Interface:
SATA Compliance, up to 150 MB/s
HDD Support:
Standard 3.5" IDE Hard Disk Drives
Support large capacity over 300GB
Power Supply:
External Universal AC Adapter
Input AC100~240V (US or EU plug)
Output DC12V/2.0A
Front Panel:
Stylish Blue Power/Data Access LED light
Back Panel Connectors:
USB B-Type Connector x 1
SATA Connector x 1
DC Power In
Power On/Off Switch
Kensington Security Lock
Accessories:
USB 2.0 A-B Cable 1m x1
SATA serial cable 1m x1
Driver & Manual CD
Quick Installation Guide
Mounting Screws
?PColor:
Silver + Dark Grey (OEM Color Available)
Dimensions:
19.8 x 12.2 x 6.1 cm (7.8 x 4.8 x 2.4 inches)
Weight: (w/o HDD)
1.23 kg (2.7 lbs)
